Fall Safety Net with Airthight Tarpaulin 10x12m

Mesh
square
Size
10 x 12 m
Material
high tenacity polypropylene, knotless / polyethylene fabric
Material diameter
5 mm
Mesh size
100 mm
Safety net system
S (rope-edged safety net)
Article number
22043-100
Unit Price
€ 785.40
Ships in approx.
8-10 days
Shipping
Shipping cost
Unit Price
€ 785.40 *
* excl. VAT:
€ 660.00

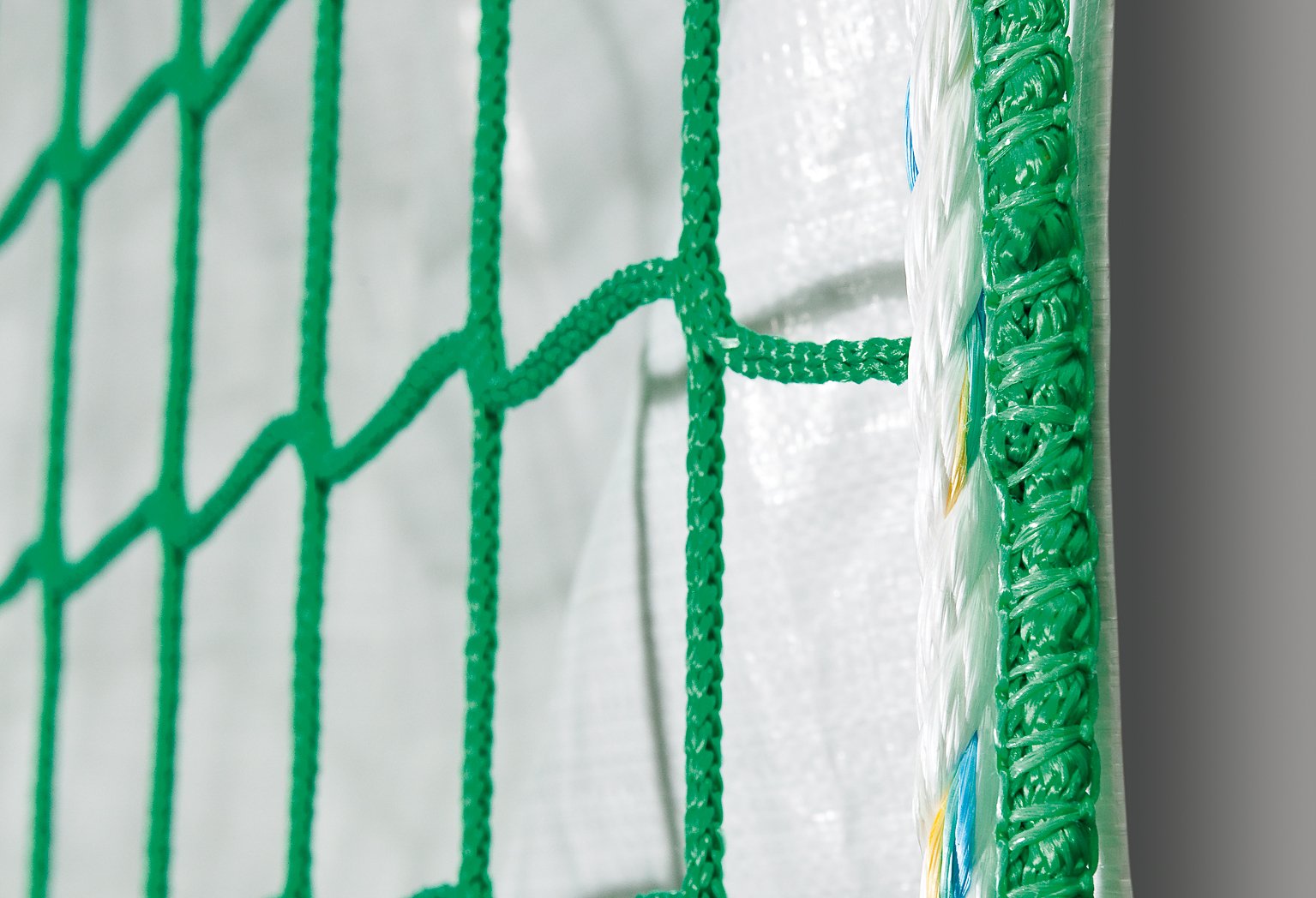

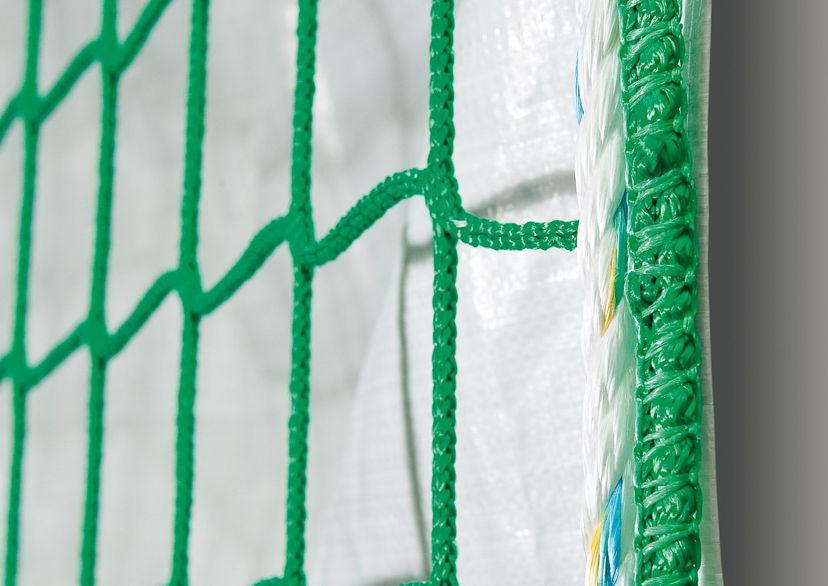

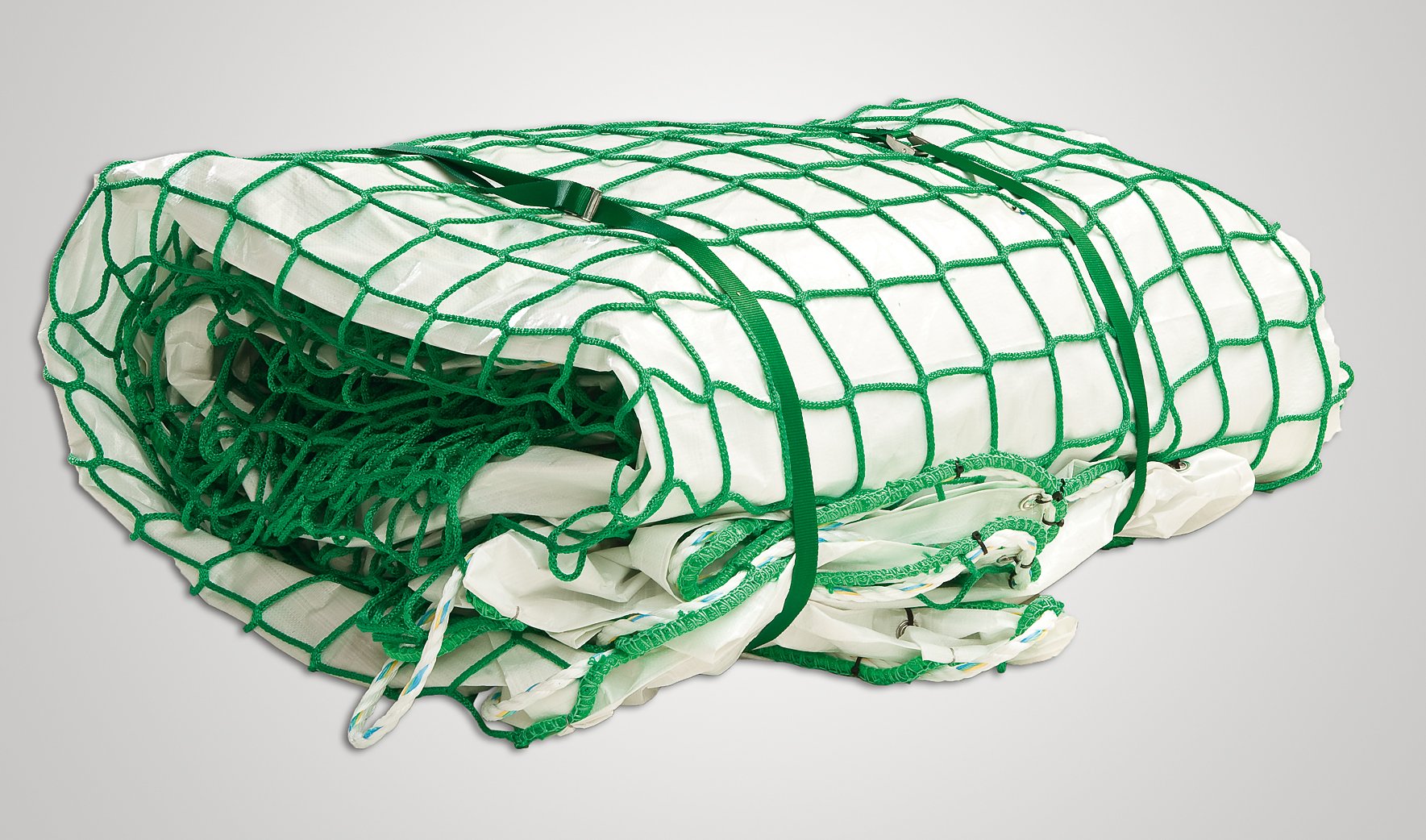

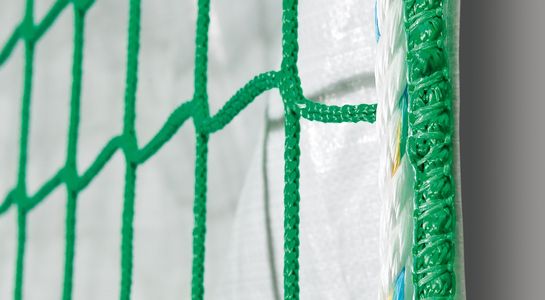

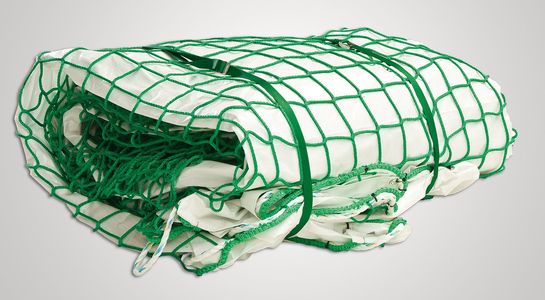

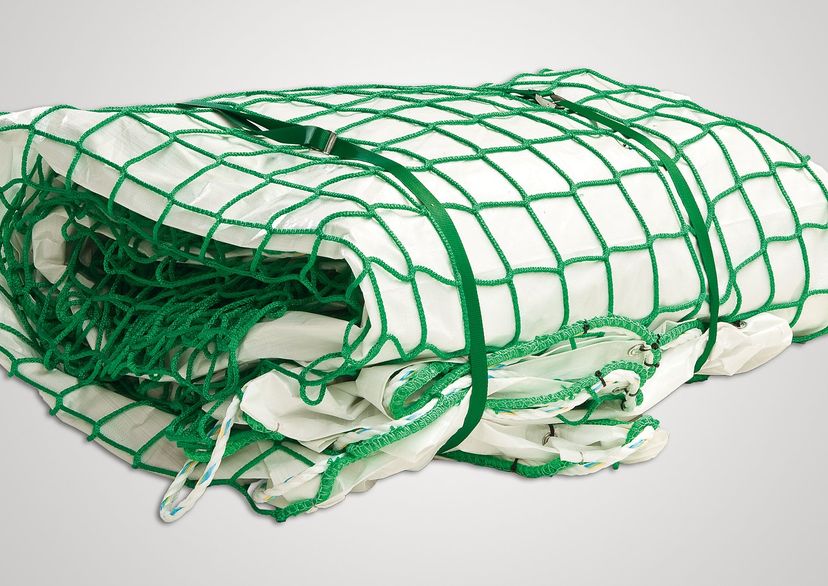

Fall Safety Net with Airthight Tarpaulin (EN 1263-1), with edged rope



The net is connected to the tarpaulin with hogrings or cable ties at a distance of approx. 1m, this prevents smaller objects and parts from falling off. In addition, the tarpaulin is equipped with a hemmed polypropylene cord and aluminium eyelets approx. every 100 cm.

The net comes with an integral surround rope, so the total net edge thickness is approx. 11 mm. This ensures that the net has strong attachment points and gives it a clean finish on all sides.

An approx. 12 mm thick rope made of Polysteel (30kN) is additionally connected to the edge to guarantee a higher strength.

Our nets are characterized by high quality and are 100% non-toxic.



To ensure the best possible quality for you, our nets are manufactured in our own production halls in Germany and are checked once again by our qualified employees before delivery.

Properties
Article number
22043-100
Available colours
Green (01)
Bending strength & abrasion resistance
good
Mesh
square
Size
10 x 12 m
Type
impermeable
Material
high tenacity polypropylene, knotless / polyethylene fabric
Material diameter
5 mm
Mesh size
100 mm
Execution
edged all round with rope
Type of Textile
HDPE tarpaulin with LDPE coating
Wind Reduction
100%
Tensile Strength of Edged Rope
30 kN
Total Weight
44.70 kg
Weight per m²
425 g/m²
Mesh breaking strength
3.20 kN
Energy absorption
4.8 kJ
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Weather-Resistance
good
UV-Resistance
300 kly
Customs tariff number
5608 19 30
Ships in approx.
8-10 days
Downloads
Safety Net Installation Information

I-001-en_Safety_nets_-_Assembly_instructions_2021.pdf

GS Certificate 1904-100_EN

GS_1904-100_EN_2018-11-05.pdf
