Brick Guardrail Net with Isilink Clips 1.5 x 5m, Mesh 60 mm

Knot, PP 5 mm, green, detail picture
Knot, PP 5 mm, blue, detail picture
Mesh
square
Size
1,5 x 5 m
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
60 mm
Safety net system
U (safety net in load-bearing construction for vertical use)
Article number
3005-060
Unit Price
€ 64.26
Ships in approx.
8-10 days
Shipping
Shipping cost
Color
Unit Price
€ 64.26 *
* excl. VAT:
€ 54.00

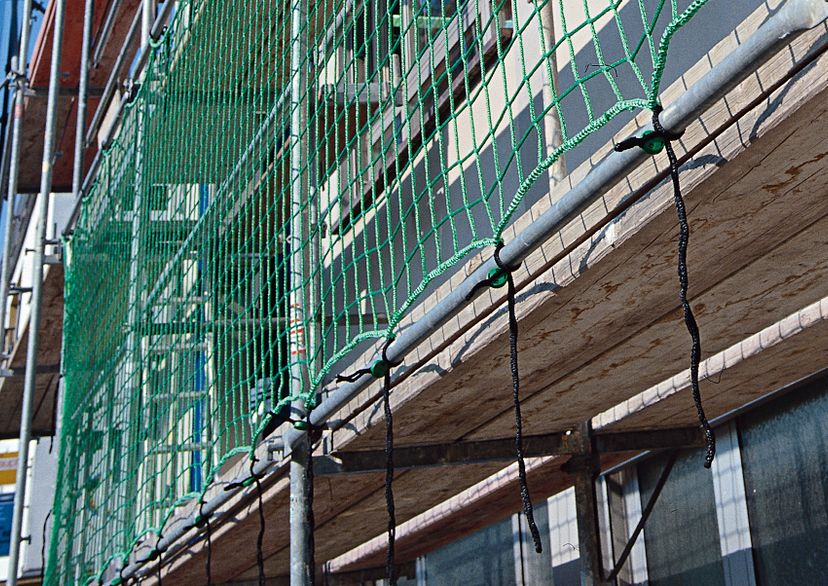

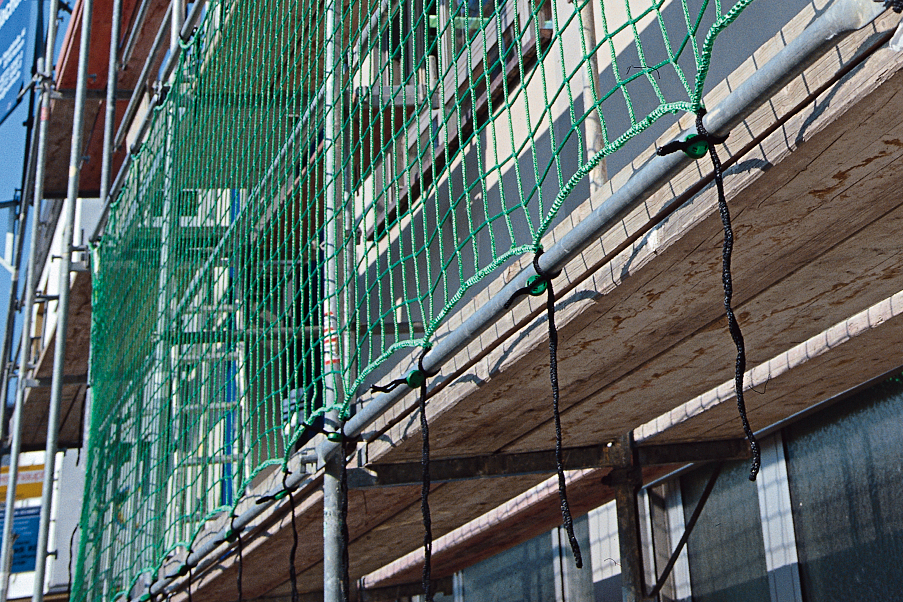

Brick guardrail safety net conform EN 1263-1, safety net system U, with integral surround rope and isilink clips (DBGM)



The net comes with an integral surround rope, so the total net edge thickness is approx. 11 mm. This ensures that the net has strong attachment points and gives it a clean finish on all sides.

Besides that it comes with 18 isilink clips (DBGM) sewn on approx. 75 cm apart. The isilink clip has a length of approx. 60 cm.

Our nets are characterized by high quality and are 100% non-toxic. Due to their weather resistance and UV-stabilization they are perfectly suitable for outdoor as well as for indoor use.



To ensure the best possible quality for you, our nets are manufactured in our own production halls in Germany and are checked once again by our qualified employees before delivery.

Properties
Article number
3005-060
Available colours
Green (01)
Blue (04)
Mesh
square
Size
1,5 x 5 m
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
60 mm
Execution
with integral surround rope and isilink clips
Mesh breaking strength
3.20 kN
Energy absorption
6,1 kJ
Total Weight
2.90 kg
Weight per m²
350 g/m²
Standards and Rules
BG regulation no. 179, DGUV information 201-011, DGUV information 201-023, EN 1263-1
Certificate
BG Eurotest verification certificate 18100027, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A1
Safety net system
U (safety net in load-bearing construction for vertical use)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Ships in approx.
8-10 days
Downloads
Assembly instruction side protection net

I-002-en_Side_protecion_nets_-_Assembly_instructions_V1.6.pdf
