Safety Net per m², Ø 5 mm, Mesh: 100 mm

Mesh
square
Size
any size
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
100 mm
Safety net system
S (rope-edged safety net)
Article number
1903-100
Unit Price per m²
€ 7.60
Ships in approx.
8-10 days
Shipping
Shipping cost
Color
 meter
 meter
Unit Price
€ 15.20 *
* excl. VAT:
€ 12.77 * inc. small size surcharge of: € 7.60 (100%)

Safety Net EN 1263-1, Safety Net System S with edged rope



You can create your own customized Safety Net. Simply select a color and enter the required length and width.

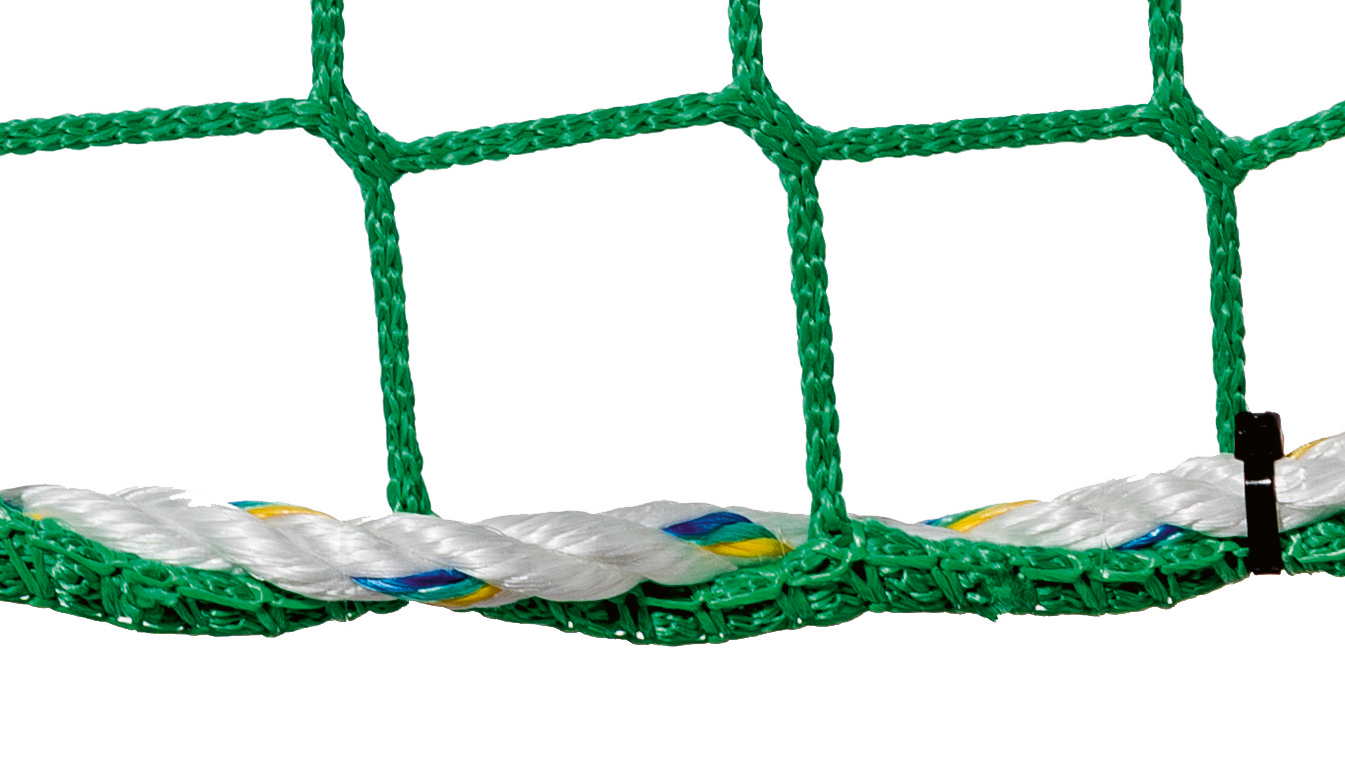

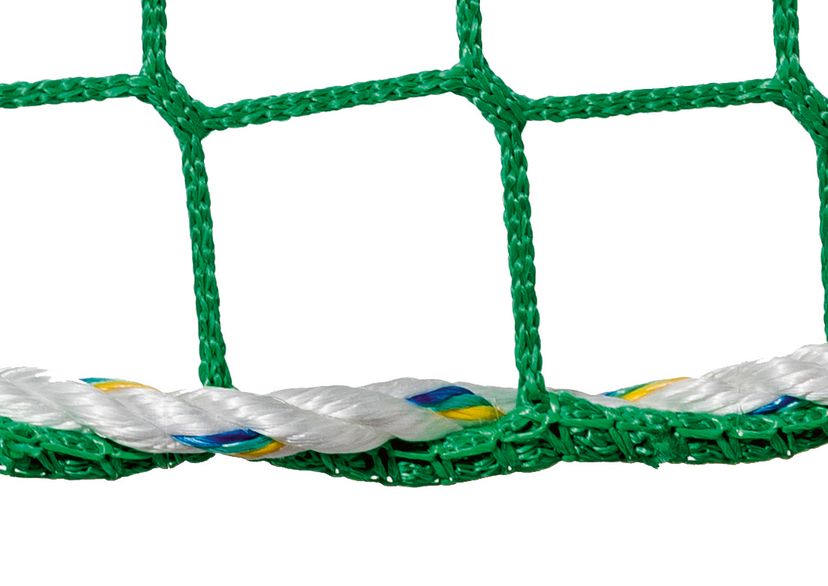

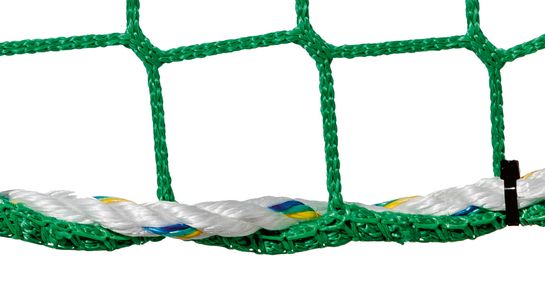

The net comes with an integral surround rope, so the total net edge thickness is approx. 11 mm. This ensures that the net has strong attachment points and gives it a clean finish on all sides.

An approx. 12 mm thick rope made of Polysteel (30kN) is additionally connected to the edge to guarantee a higher strength.

Our nets are characterized by high quality and are 100% non-toxic. Due to their weather resistance and UV-stabilization they are perfectly suitable for outdoor as well as for indoor use.



To ensure the best possible quality for you, our nets are manufactured in our own production halls in Germany and are checked once again by our qualified employees before delivery.

Properties
Article number
1903-100
Available colours
Green (01)
White (02)

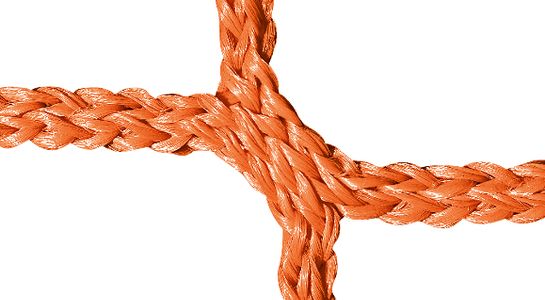

Orange (03)
Blue (04)

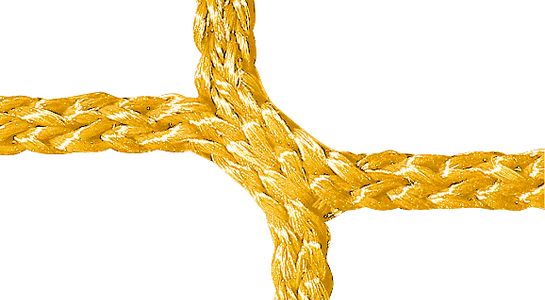

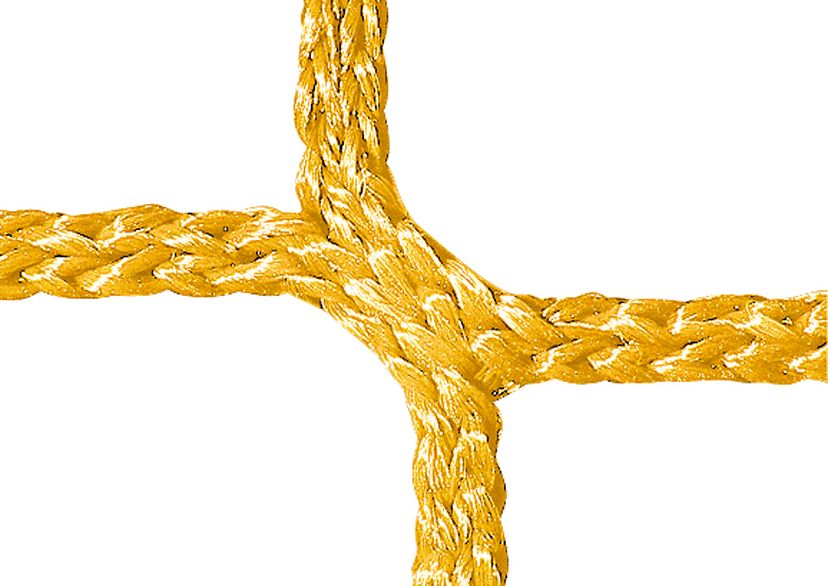

Yellow (05)
Black (06)

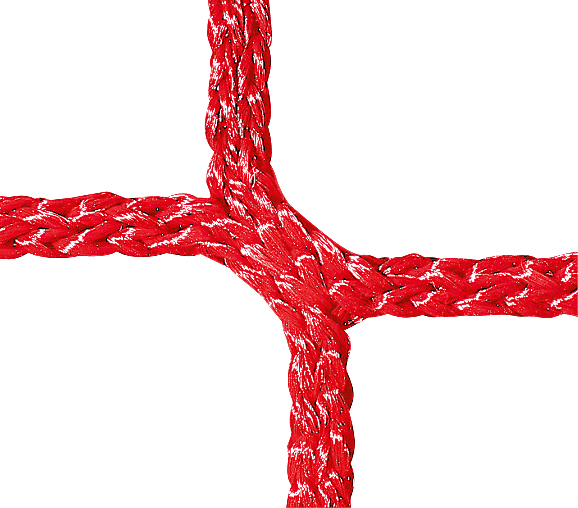

Red (07)

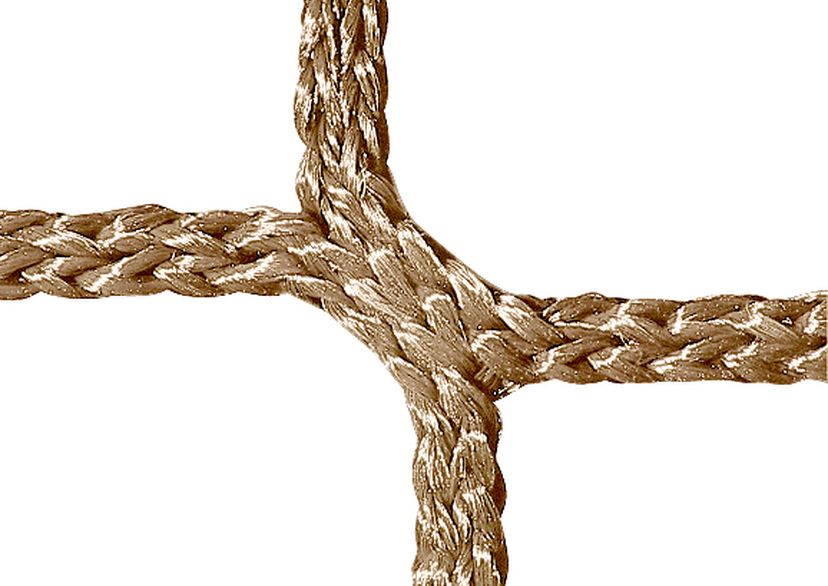

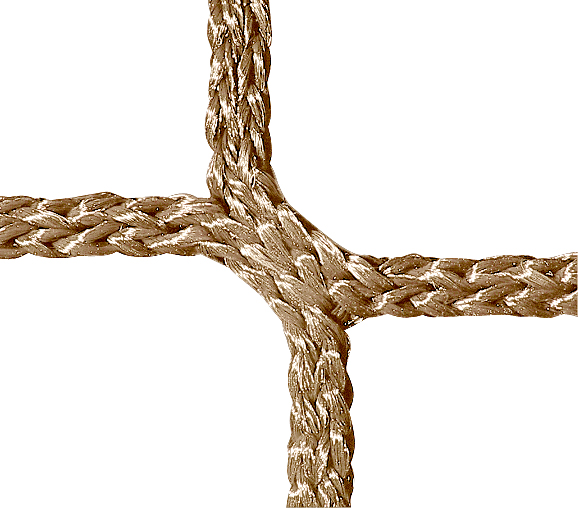

Hemp (08)
Mesh
square
Size
any size
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
100 mm
Execution
edged all round with rope
Mesh breaking strength
3.20 kN
Energy absorption
4.8 kJ
Tensile Strength of Edged Rope
30 kN
Weight per m²
275 g/m²
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Ships in approx.
8-10 days
