Webbing safety net complete set, size 1.525 x 3.025 m
Mesh
square
Size
1.525 x 3.025 m
Material
high tenacity polypropylene (cover net), polyester (webbing net)
Material diameter
2.3 mm (cover net)
Mesh size
20 mm (cover net), 300 mm (webbing net)
Webbing safety net DIN EN 12195-2 complete set 1.525 x 3.025 m, with tension belts
The set consists of a close-meshed PP cover net Ø 2.3 mm (mesh size 20 mm) and a polyester webbing net (mesh size 300 mm), plus six matching tensioning belts and detailed operating instructions.
The HUCK webbing net is GS tested and is manufactured in accordance with VDI 2700ff and DIN EN 12195-2.

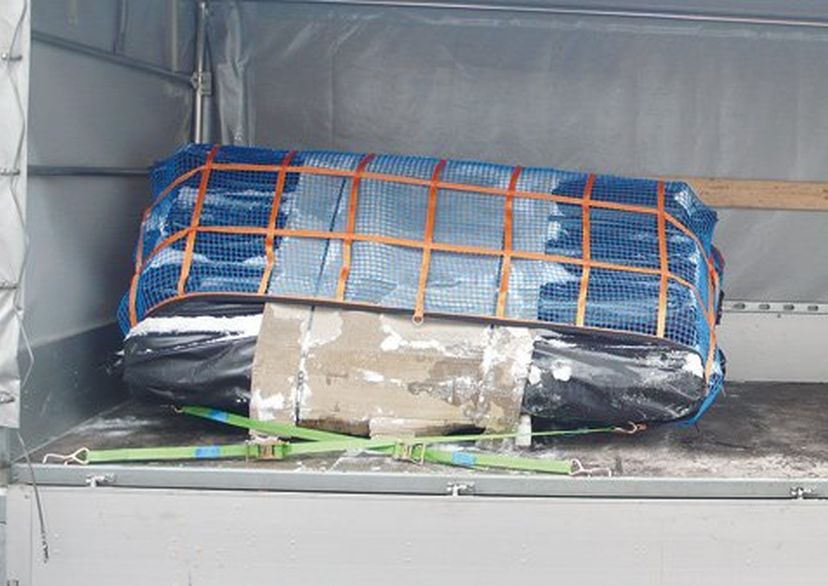

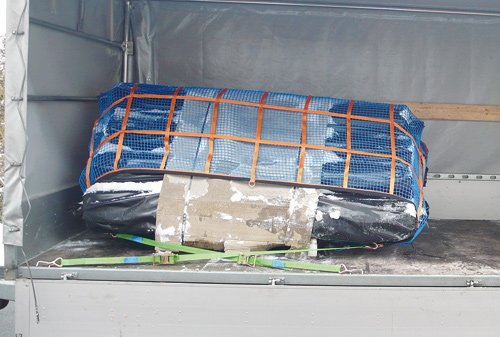

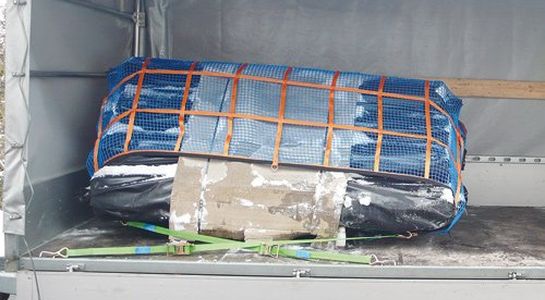

The net is used to secure loads for cars or trailers and can be used as a form-fit (diagonal, diagonal lashing) and force-fit (tie-down lashing).
In order to ensure the best possible quality for you, our nets are manufactured in our own production halls in Germany and are checked again by our qualified employees before delivery.
Properties
Article number
59400K-320-03
Mesh
square
Size
1.525 x 3.025 m
Material
high tenacity polypropylene (cover net), polyester (webbing net)
Material diameter
2.3 mm (cover net)
Strap Width
25 mm
Mesh size
20 mm (cover net), 300 mm (webbing net)
Mesh Connection
seamed
Permissible Tensile Force
400 daN (lashing point), 1300 daN (net total)
Permissible max. mass
vans: up to 2 t; trailers: up to 3,5 t
Standards and Rules
EN 12195-2, VDI standard 2700
Certificate
GS verification certificate
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Tensile strength after two years of climatic influences
90%
Included Parts
cargo safety net incl. 6 tension belts (two-piece load restraint assembly, max. tensile force: 1000 daN, length: 2.00 m)
Customs tariff number
5608 19 30
Total Weight
5.10 kg
Ships in approx.
6-8 days
Downloads
Load restraint webbing net Installation and operating instructions
I-100-en_Load_restraint_webbing_net_Installation_and_operating_i_13FOM1N.pdf
