Webbing net complete set, size: 3.05 x 4.25 m
Mesh
square
Size
3.05 x 4.25 m
Material
polyester
Mesh size
300 mm
Webbing net DIN EN 12195-2 complete set 3.05 x 4.25 m, with tensioning straps
The set includes a webbing net made of high-strength polyester (mesh size 300 mm), eight matching tension belts and a detailed instruction manual. The webbing net is GS tested and is manufactured according to VDI 2700ff and DIN EN 12195-2.

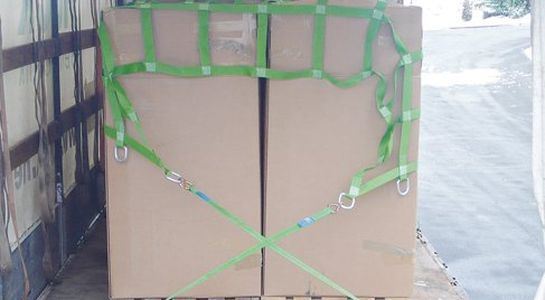

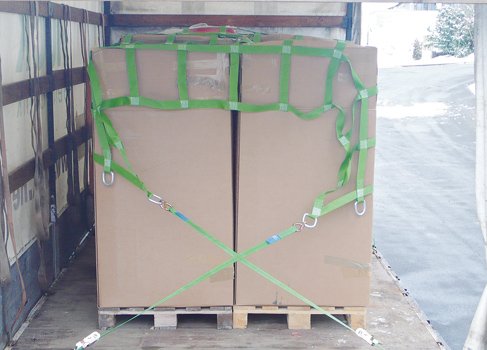

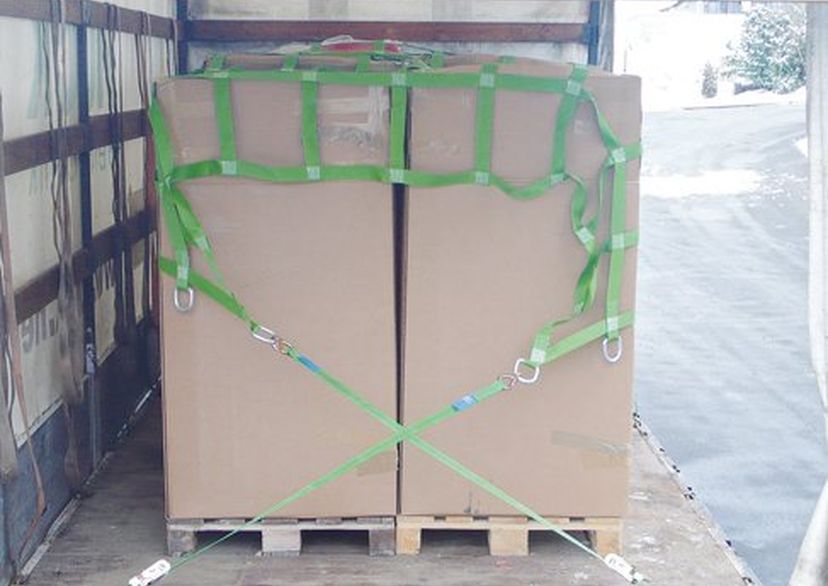

The net is used as load securing for lorries with a permissible total weight of 7.5 to 12 tons and can be used form-fitting (diagonal, diagonal lashing) and force-fitting (tie-down lashing).
In order to ensure the best possible quality for you, our nets are manufactured in our own production halls in Germany and are checked again by our qualified employees before delivery.
Properties
Article number
591000-300-51
Mesh
square
Size
3.05 x 4.25 m
Material
polyester
Strap Width
50 mm
Mesh size
300 mm
Mesh Connection
seamed
Permissible Tensile Force
1000 daN (lashing point), 5600 daN (net total)
Permissible max. mass
lorries: 7,5 - 12 t
Standards and Rules
EN 12195-2, VDI standard 2700
Certificate
GS verification certificate
Continuous operating temperature
-40 to +100 °C
Melting point
260 °C
Bending strength & abrasion resistance
good
Tensile strength after two years of climatic influences
90%
Included Parts

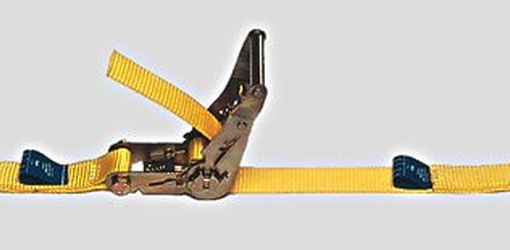

cargo net incl. 8 tension belts (two-piece load restraint assembly, max. tensile force: 1000 daN, length: 2.00 m)
Customs tariff number
5608 19 30
Total Weight
16.00 kg
Ships in approx.
6-8 days
Downloads
Load restraint webbing net Installation and operating instructions
I-100-en_Load_restraint_webbing_net_Installation_and_operating_i_13FOM1N.pdf
